Mini FANLESS LG-P1000F-GTX1650 Intel 9th i7, 8K 3x DP, HDMI, DVI, Optn Ignition Control

  • Model: LG-P1000F-GTX1650
  • Manufactured by: LOGISYS

 Ask a Question

Starting at: $2,490.00

Please Choose:

Graphic On-board




Network






Special Options











Click the arrow dropdown options



Mounting bracket






Warranty




Add to Cart:
Intel 9th Generation (coffee Lake) i7 with nVidia Geforce GTX1650 supports 8K 3x displays ports, Optional Ignition Control

Powered by 9th/8th generation 8 cores Intel Xeon/Core i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel C246 chipset, NVIDIA GeForce GTX 1650 graphics engine, supporting NVIDIA Pascal GPU architecture, max 6 independent HD display supporting up to 8K resolution, multiple USB 3.1 Gen 2 interfaces offering 10Gbps data transfer rate, 4 2.5” SSD trays delivering up to 32TB capacity, PCI/PCIe expansion for versatile configurations, smart manageability, industrial-grade reliability. LOGISYS LG-P1000F GTX1650 Expandable GPU Computing System makes it a great solution for Computer Vision, Facial Recognition, Robotic Control, and Public Surveillance and any real-time AIoT oriented embedded spheres.



  • 8 Cores 9th/8th Gen Intel Xeon/Core i7/i5/i3 (Coffee Lake) with workstation-grade Intel C246 Chipset

  • Heavy Duty Mini Industrial PC

  • 2 DDR4 2666MHz memory, up to 64GB (ECC/Non-ECC)

  • NVIDIA GeForce GTX 1650 graphics engine, NVIDIA Pascal GPU architecture, up to 8K resolution

  • 1 VGA, 1 HDMI, 2 DVI and 3 DisplayPort display interfaces, up to 6 independent HD displays

  • Multiple external USB 3.1 Gen 2, up to 10Gbps data transfer

  • 2 independent GigE LAN, upgradable to 6GigE LAN with 4 IEEE 802.3at PoE+

  • 32 Isolated DIO, 6 USB 3.1, 4 COM RS-232/422/485, 16 GPIO

  • Storage : 2 2.5" SSD trays, 1 CFast, 1 M.2, 4 SATA III

  • Expansion : 1 PCIe, 2 Mini PCIe/mSATA, 1 M.2

  • 3 front access SIM card sockets for WiFi/4G/3G/LTE/GPRS/UMTS connectivity (Required Separate Mini PCIe Modem)

  • 12V to 36V DC Power Input with 80V Surge Protection

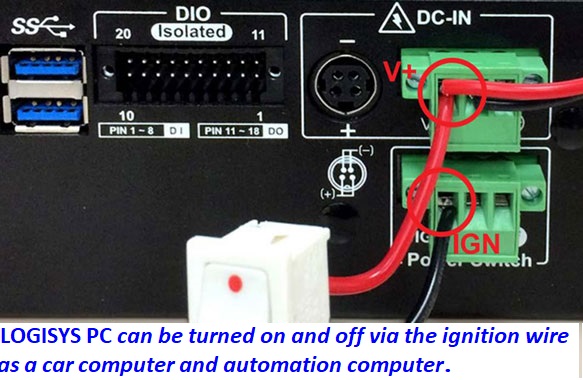

  • Configurable Ignition Control for In-Vehicle user, power off delay up to 24 hours

  • Fanless, -40°C to 70°C Operating Temperature when pair with special Memory and SSD

  • Intel Firmware Raid

  • EN50155 compliant

  •

 Excellent Performance

 Leading Integration

Secured Operation

Trusted Reliability

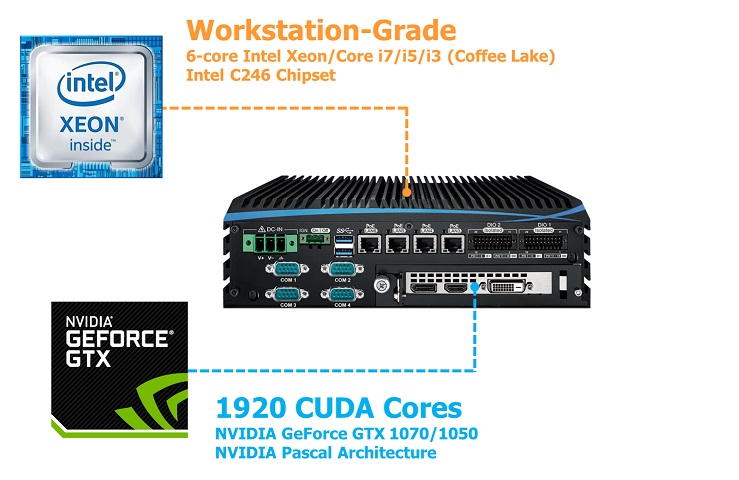

    • Workstation-grade Platform : 6-core Intel Xeon/Core i7/i5/i3 + Intel C246 chipset (Coffee Lake)
    • Advanced GPU Computing : NVIDIA GeForce GTX 1650 graphics engine, NVIDIA Pascal GPU Architecture, max 1920 CUDA Cores Computing, up to 8K Resolution
    • High-speed System Operation : USB 3.1 (10G), PCIe 3.0 (8GT/s), SATA III (6G), USB 3.0 (5G), PoE+ (1G), GigE LAN (1G)
    • Integrated USB 3.1 Gen 2 supports up to 10Gbps data transfer
    • Intel Coffee Lake + NVIDIA GTX 10 Series GPU, max 7 independent displays

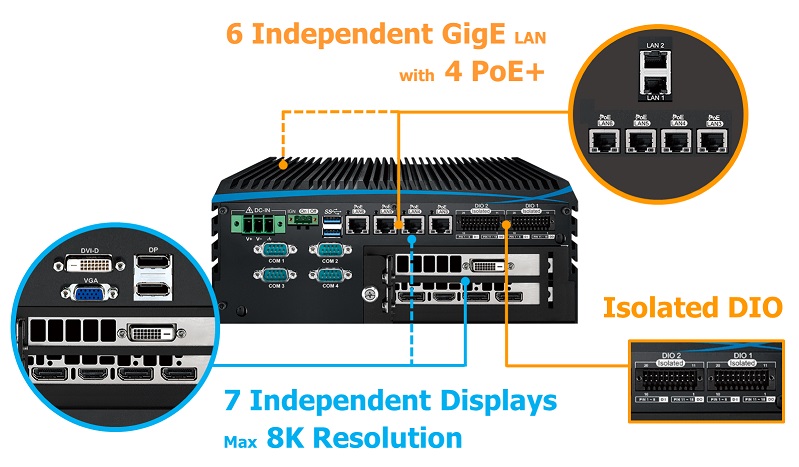

    • 6 independent GigE LAN with 4 IEEE 802.3at PoE+

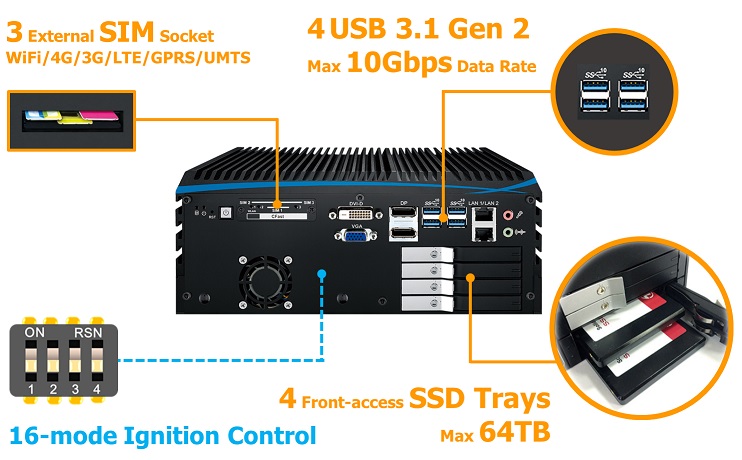

    • Supports multiple WiFi/4G/3G/LTE/GPRS/UMTS
    • Storage: 4 2.5” SSD trays, CFast socket, M.2
    • 6 external USB 3.1 support up to 4-port 10Gbps USB data delivery
    • Expansion: Mini PCIe/mSATA, M.2, optional PCI/PCIe Slot
    • RAID 0, 1, 5, 10 Data Protection

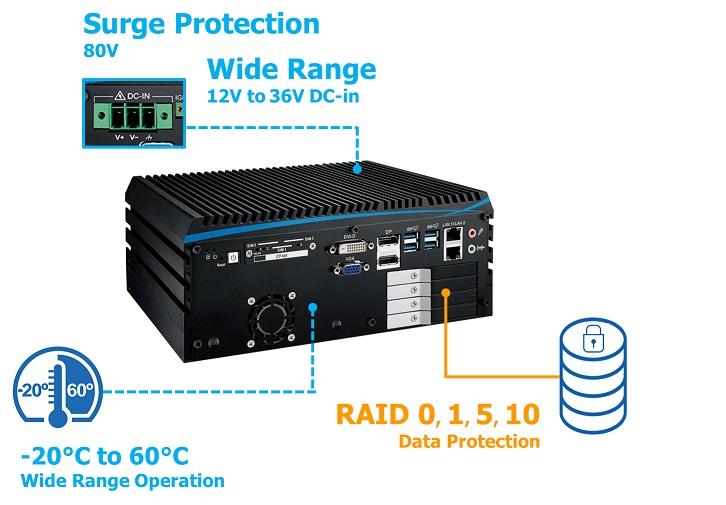

    • 12V to 36 V DC-in with 80V Surge Protection
    • 32 Isolated DIO
    • 16-mode Ignition Power Control
    • Remote Power Switch
    • Smart Manageability : iAMT 12.0, TPM 2.0, PXE, Wake on LAN
    • -20°C to 60°C wide-range operating temperature
    • Smart Circuit Protection
    • Smart Power Protection
    • Smart Data Protection
    • Always-on non-stop wireless data transfer
    • Anti-shock, Anti-vibration
    • EN50155, EN50121-3-2 compliant

Specifications

System
Processor 8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial  4 COM RS-232/422/485 (ESD 8KV)
USB

- 6 USB 3.1 (External)

- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, PoE, Wireless
SIM Card  3 External SIM card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/external SIM/mSATA
M.2 1 M.2 Key E Socket (2230, PCIe/USB)
Graphics
Graphics Processor

- Intel® UHD Graphics 630

- Independent Graphics：By request
Interface

Up to 7 independent displays：

- 1 VGA : Up to 1920 x 1200 @60Hz

- 1 DVI : Up to 1920 x 1200 @60Hz

- 2 DisplayPort : Up to 4096 x 2304 @60Hz

- By requested Graphics Card
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 2 SATA III (Mini PCIe type, 6Gbps)
M.2

- 1 M.2 Key M Socket (2280, PCIe x4/SATA)

- 1 M.2 Key B Socket (2280, PCIe/SATA/USB2)
Storage Device

- 1 CFast Socket, Push-in/Push-out ejector

- 2 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
PoE   (upgrade options)
LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
Power
Power Input 12V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension  260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 4.8 kg (10.58 lb)

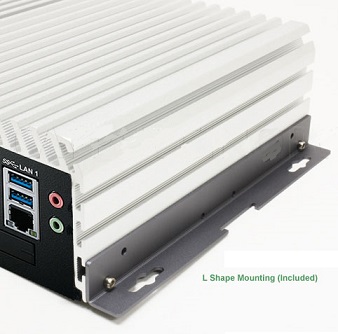

Mounting

- Wallmount by mounting bracket

- DIN Rail mount (optional)

- 2U Rackmount (optional)
Environment
Operating Temperature  -20°C to 45°C (-4°F to 113°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 45°C
Shock/Vibration

- IEC 61373：2010

- Railway Applications：Rolling Stock Equipment, Shock and Vibrtion Tests
EMC CE, FCC, EN50155, EN50121-3-2
